DUAL ENDED BUDGET STEERING CYLINDER KIT FOR DANA 60
DUAL ENDED BUDGET STEERING CYLINDER KIT FOR DANA 60
DUAL ENDED BUDGET STEERING CYLINDER KIT FOR DANA 60 DUAL ENDED BUDGET STEERING CYLINDER KIT FOR DANA 60

DUAL ENDED BUDGET STEERING CYLINDER KIT FOR DANA 60

$ 51.73

$ 67.25

Save: $

34TieRodKit:
  • Yes
  • No
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Features Grooved Non-Slip Casting and machined for use with four (4) clamps.

Will work for Axle setups with 8 inches of steering travel and up to 50" tires.

8” Stroke x 2.5” Bore 1.5” Rod
  • 1 Ton Application will require a 2.5x8" Ram, running 50" and smaller tires

If running a bigger axle or set up it is recommended to go to the or

  • Recommended for 2.5 Ton Axles, will also work for 5 Ton, Meritor and other Applications
  • If you are running bigger than 50" tires, please see our

3/4" NF threaded ends will work with most Clevis Kits,
Mounts with 3/8” to 10mm hardware (not supplied )
-6 ORBF inlet hydralic ports
1.5" diamiter rod

Includes:

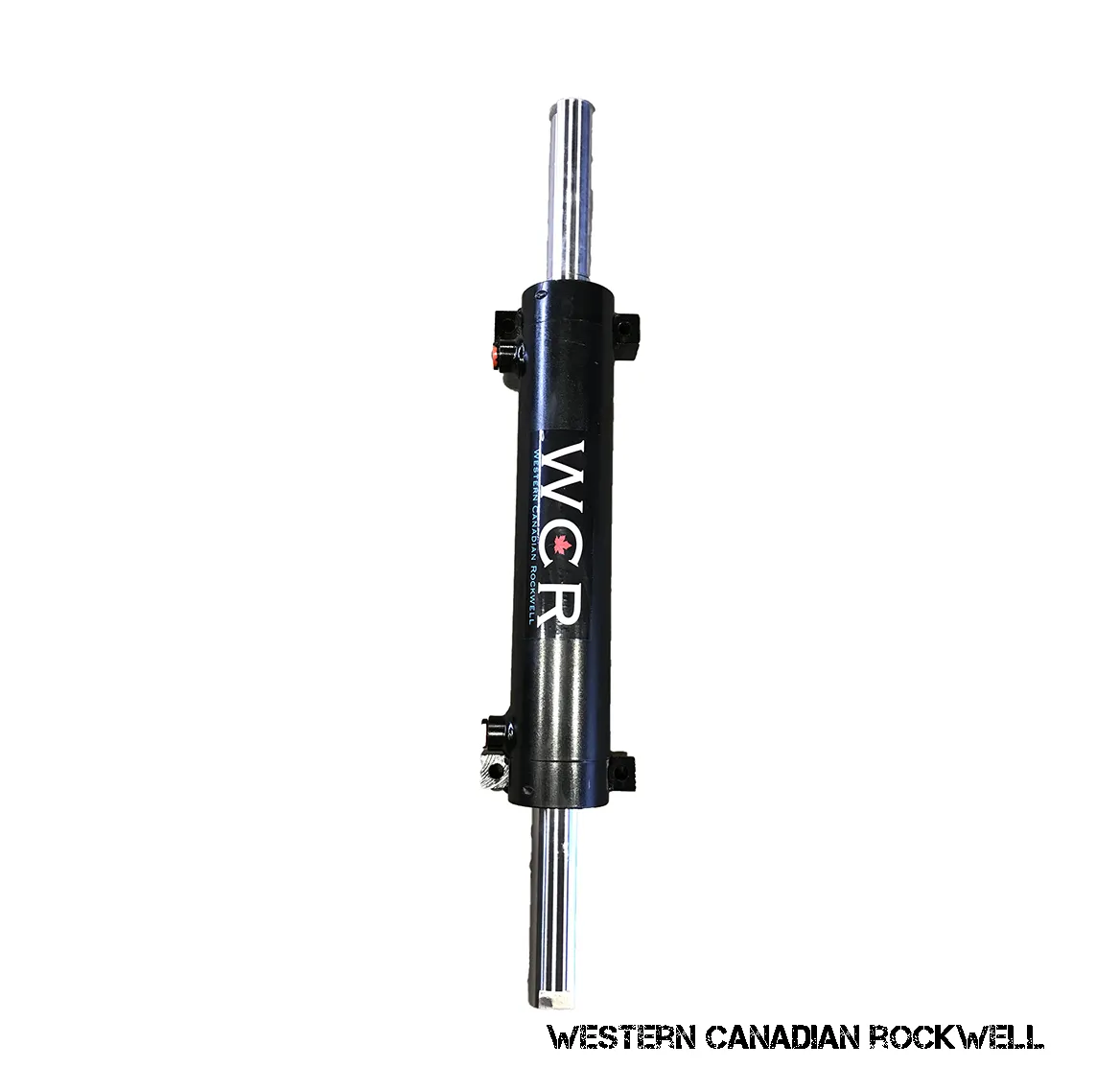

  • (1x) Budget Double Ended Ram 8” Stroke x 2.5” Bore 1.5” Rod

Optional Kits

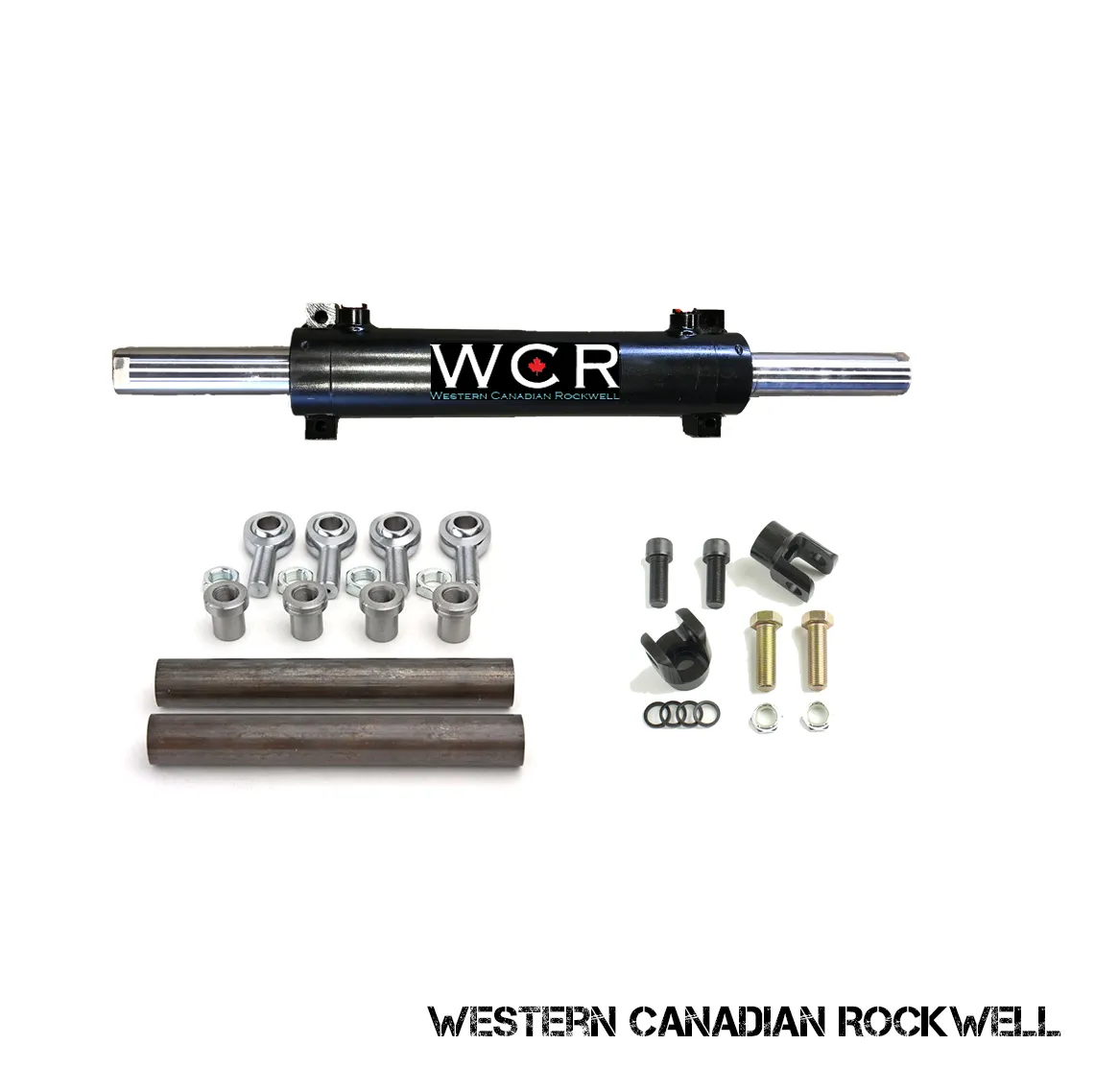

With Tie Rod Kit:

  • (1x) Budget Double Ended Ram 8” Stroke x 2.5” Bore 1.5” Rod
  • (1x) SC16 - Clevis Kit
  • Tie Rod with Rod Ends

Turns Lock to Lock 2.5x8 with the folowing Orbitals:

  • 125 = 3.3 turns
  • 185 = 2.2 turns
  • 200 = 2.1 turns
  • 230 = 1.8 turns
  • 250 = 1.6 turns
  • 315 = 1.3 turns
  • 370 = 1.1 turns
  • 400 = 1.0 turns
